BioMAP 서비스는 Human Primary Cell 및 Cancer Cell line을 mono-culture, co-culture를 통해 tissue 및 disease model을 구현한 phenotypic screening 서비스입니다. 개발하고 있는 신약 후보 물질의 efficacy, safety 및 mechanism of action (MOA)를 확인할 수 있으며, 4500개가 넘어가는 임상 약물 및 시판되고 있는 약물(Benchmarking compound)과 1:1 비교를 통해 약물의 MOA 검증 및 Drug repositioning에 활용할 수 있습니다.

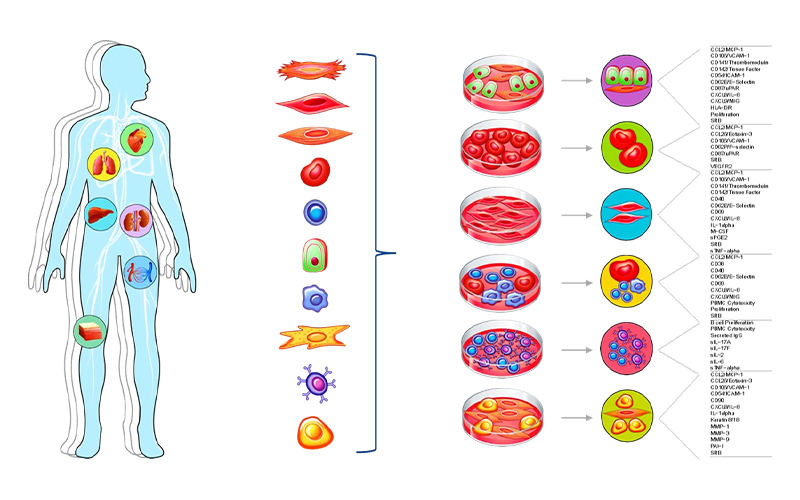

60개 이상의 Human primary cell-based disease model 구현
150개 이상의 질병 관련 바이오마커 변화 관찰clinically relevant protein biomarkers
4,500개 이상의 임상 약물에 대한 Database 보유하여 1:1 비교 가능
약물의 MOA와 효능, 안정성에 대한 통합적인 평가
이런 서비스 유형을 제공합니다
서비스
유형
Diversity PLUS
Fibrosis Panel
T Cell
Oncology
Oncology
Autoimmune
Panel
CRC Panels
NSCLS Panels
Biomarker Readout
148
54
51
41
42
농도 개수
4개 농도(1/3 또는 1/10)
Biomarker Readout
singlicate
Triplicate
Triplicate
Triplicate
Triplicate
Sample Volume* (Small Molecule)
150ul
180ul
180ul
120ul
120ul
Sample Volume* (Biologics)
1.5ml
1.8ml
1.8ml
1.2ml
1.2ml
서비스 장소
St Charles,MO USA
데이터 자료를 살펴보세요

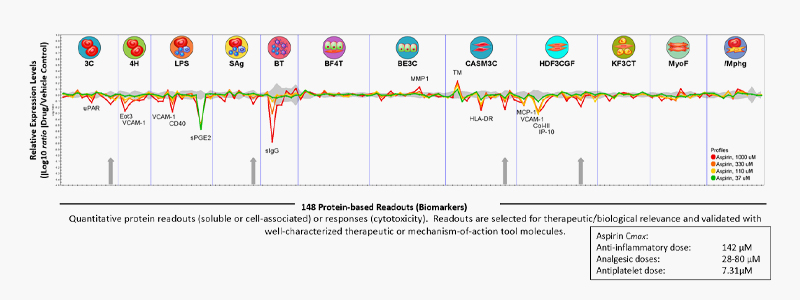

[Aspirin was profiled at four concentrations (1000 µM, red; 330 µM, orange; 100 µM, yellow; and 37 µM, green) in the BioMAP® Diversity PLUS® Panel and concentrations were selected based on clinical Cmax values. The range of historical vehicle control data is represented by the gray region closest to the axis. Annotated peaks represent biomarker activities demonstrating statistically significant changes during compound treatment relative to historical vehicle controls]
[Biomarker activity profile of the standard-of-care drug nintedanib in the BioMAP Fibrosis Panel demonstrates antifibrotic, immunomodulatory, and anti-inflammatory activities in all three fibrosis models.]
