Cardiac Safety ex vivo service
서비스를 소개합니다
AnaBios의 Cardiac
Safety 서비스는 CardioPRIME® 플랫폼을
통해 인간 심근세포를 활용하여 약물의 심장 안전성을 평가합니다. 이 서비스는 인간 심장 조직에서 직접
데이터를 수집하여 비임상-임상 일치 가능성이 높은 결과를 제공하며, 약물로
인한 부정맥 위험(proarrhythmia)과 심근 수축력(inotropy)
변화를 정밀하게 분석합니다. CardioPRIME®을 통하여 전임상 단계에서 약물의 심장
독성과 효능을 조기에 평가해보세요.
주요 특징
- 부정맥
위험 평가:
- 약물로
인해 발생할 수 있는 조기 재분극(EAD) 및 비정상적인 이차 수축(AC)을 정밀하게 감지
- 96%*의 예측 정확도의 부정맥 평가 기술 제공
- * Nguyen, Nathalie et al (2017) Frontiers in physiology
- 심근
수축력 분석:
- 약물에
의한 inotropy 변화(수축력 증가 또는 감소)를 평가하여 심혈관 치료제 개발 지원.
- 생리학적
칼슘 신호와 전기-기계적 결합을 기반으로 한 데이터 제공
- 인간
중심 데이터:
- 건강한
기증자와 질환 상태를 가진 기증자로부터 얻은 인간 심근세포 사용
- 동물 모델과
달리 인간 생리학과 직접적으로 연관된 결과 확보
- MYOBLAZER™ 플랫폼:
- 다중 세포를
동시에 분석하는 고효율 플랫폼
이런 서비스 유형을 제공합니다
서비스 유형 | CardioPRIME |
Preparation | Atrial or ventricular cardiomyocytes |
Formulation vehicles | Saline buffer or 0.1% - 0.3% DMSO |
Frequency | 1Hz via field electrodes |
결과 데이터 | Pro-arrhythmia |
Inotropy | |
Ca2+ signaling | |
Electrophysiology and cell health | |
실험 소요 기간 | 4-6주 |
서비스 장소 | USA |
데이터 자료를 살펴보세요

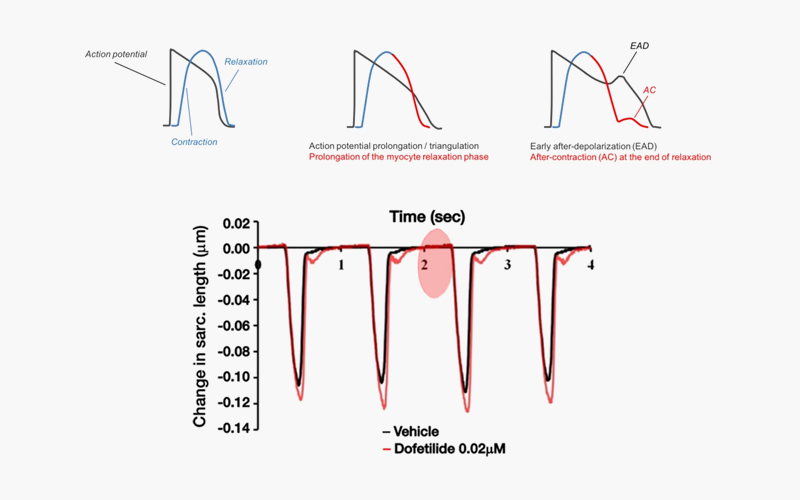

Figure 1. Electromechanical Coupling
Enables High-Fidelity Proarrhythmia Detection. Top
image, left panel: The action potential drives
physical contraction and relaxation. Top panel, middle: Changes in
the shape of the action potential, such as drug-induced prolongation, causes
subsequent changes in the contractility waveform. Top panel right:
Sentinel proarrhythmic triggers such as early-afterdepolarizations (EAD) are
reflected in the contractility transient as after-contractions (AC); Lower
image: Real-world example of detecting proarrhythmia as demonstrated by the
application of dof. (0.02µM) and AC generation (adapted from Nguyen et al.,
2017).

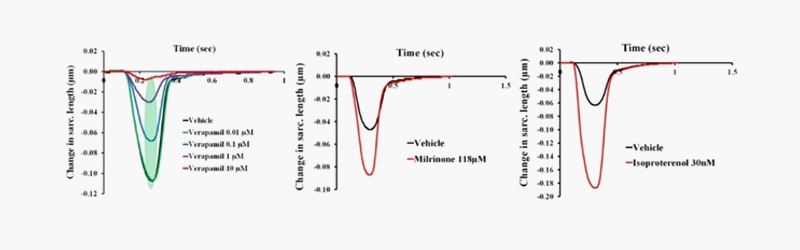

Figure 2. Detecting Positive &
Negative Inotropy Using Primary Human Cardiomyocytes. The calcium channel blocker ver. (left), which is known
to reduce cardiac contractility through Ca2+ channel block,
elicits negative inotropy while milr. (middle) and isop. (right) elicit
positive inotropic effects through the phosphodiesterase and b-adrenergic
systems, respectively.

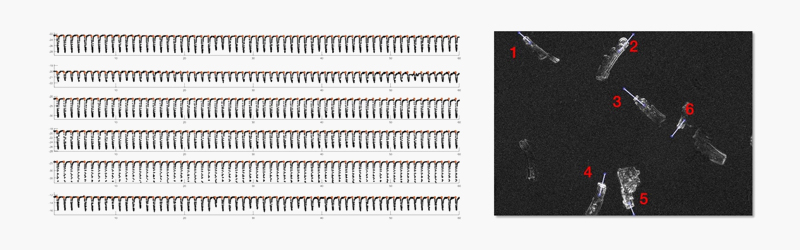

Figure 3. Increased Throughput with
Simultaneous Multi-Cell Recording. MyoBLAZER
enables rapid data collection and assessment. Multiple cells are imaged at once
in the video in Figure 3
Figure 4. Regions of Interest &
simultaneous data collection. In Figure
4 , regions of interest are defined (left image) and data is
simultaneously collected across all denoted cardiomyocytes (right image).

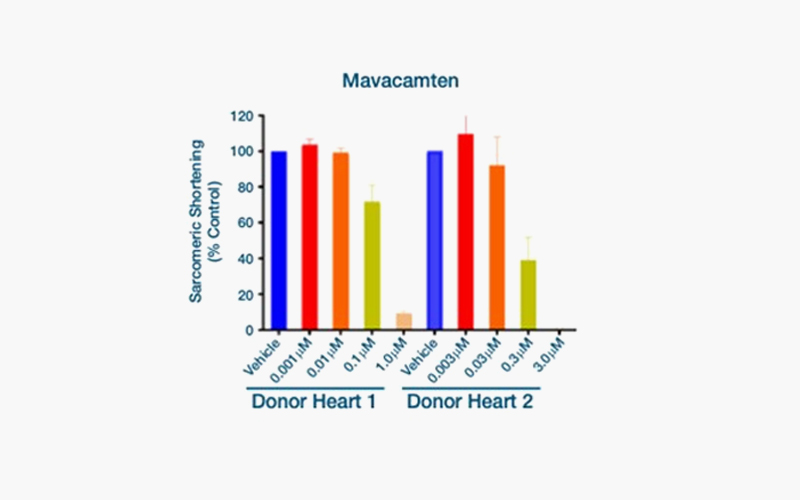

Figure 5. Ex Vivo Human cardiomyocytes
ensure clinical translation. In Figure
5 above, cardiomyocytes from two different healthy donors demonstrate
decreased sarcomeric shortening (negative inotropy) in response to application
of the myosin inhibitor Mavacamten.
서비스는 이런 절차로 진행됩니다
-
서비스상담
실험항목 및 조건 논의 -
계약
실험의뢰서(CSF) 작성
(필요시) 계약서 작성 -
시료 준비
(택배 혹은 방문수령) -
시료 발송
Tracking no. 안내
Report due date 안내 -
결과제공
최종 보고서 전달
결과 검토 및 상담
결제 진행
